Recital Hall

Recital Hall

Specification

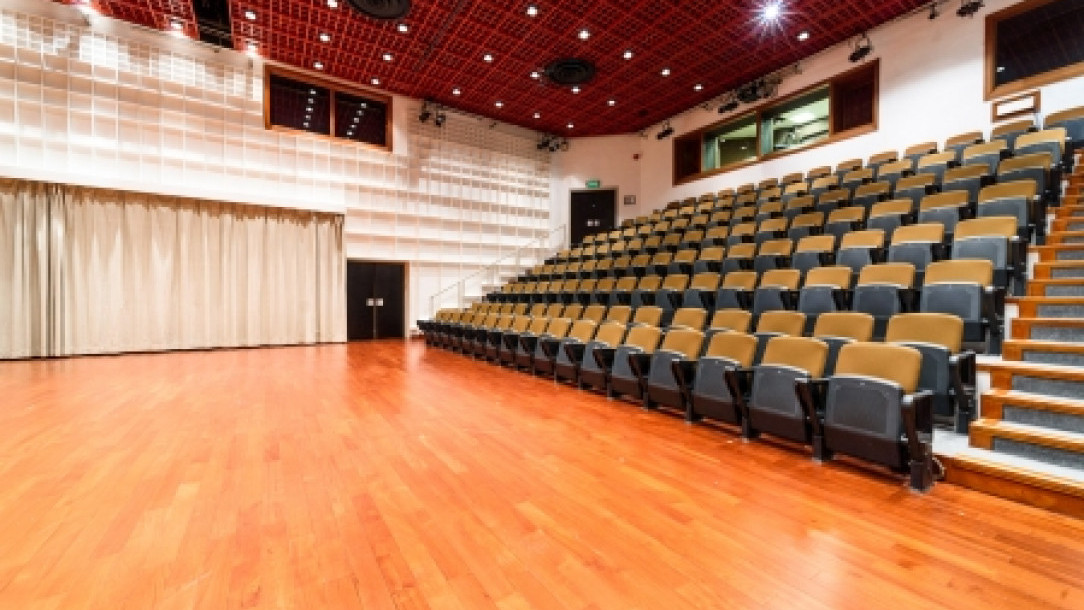

Auditorium :
  • Raked floor: continental seating in one level
  • Seating capacity:
    • Standard Seating: 133
    • Extra Seats Plan A: 202 (subject to special arrangement)
    • Extra Seats Plan B: 162 (subject to special arrangement)
  • 2 wheel-chair spaces
Stage :
  • Studio stage: Flat floor
  • Floor surface: Polished timber
  • Standard Seating: 11.5m(W) x 7.8m(D)
  • Extra Seats Plan A: 6m(W) x 6m(D)
  • Extra Seats Plan B: 11.5m(W) x 6m(D)
Suspension System :
  • 1 motorized bars overhead (SWL 250kg)
Get In :
  • Through stage door, minimum dimension: 1.6m(W) x 2m(H)
  • Goods lift access to all floors
** Stage Equipment :
  • Musician chair / Music stand
* Musical Instruments :
  • 2 Steinway D-274 Grand Pianos
Projection Screen :
  • Da-Lite Matt White electric roller front projection screen mounted in ceiling, screen size: 5.4m(W) x 4m(H)
Video Projector :
  • Panasonic PT-RZ770 DLP Laser Projector(7,200 lumens), aspect ratio 16 : 10,  native resolution : 1920 x 1200(WUXGA), permanent installed
Dressing Room :

** Subject to availability

  • 2 dressing rooms DR22 and DR23 at backstage
  • DR 22 for 4 persons
  • Dressing room 23 for 2 persons with shower
Other Facilities :
  • Show relay
  • CCTV

Technical Information

Note:

The Academy reserves the right to amend or upgrade venue facilities without notice.
* Optional equipment for which an additional daily hire charge will apply.
** These items are shared amongst several venues. Their availability for a particular hiring is at the management's sole discretion.
